Silicone Rubber Heaters

Surface Sensing Thermostats

• They are mounted to monitor the temperature of the part that the heater is attached to and can be mounted to stock heaters. Backer Marathon has several stock settings available and if other temperature settings are required, thermostats can be special ordered.
• Thermostats are snap action style and are rated to 10 amps at 240 volts or 14 amps at 120 volts. They are not recommended for low voltage heaters.

(all tolerances +/-9°F)

Air Sensing Thermostats

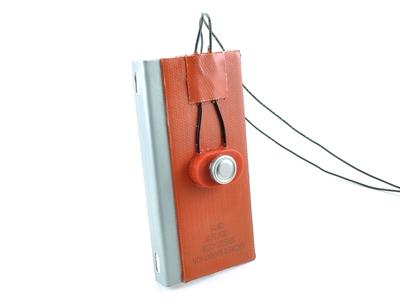

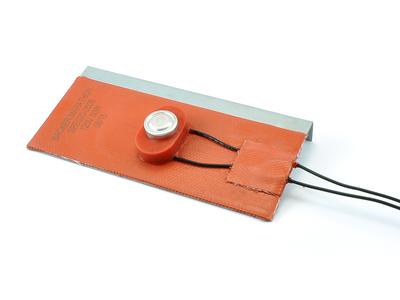

• Mounted to sense the temperature of the ambient air, they are commonly used with enclosure heaters when the air temperature is more important than the heater temperature.
• Air sensing thermostats can be added to stock enclosure heaters and standard stock heaters.
• They are available in the same temperature ratings as the surface sensing thermostats.

(all tolerances +/- 9°F)

Adjustable Thermostats

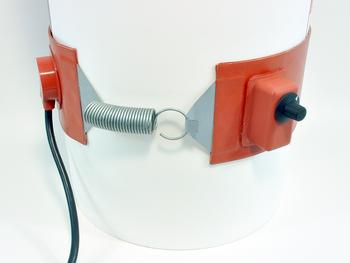

• Can only be used to sense part temperature. They are often used with drum heaters but can also be used with standard heaters. Temperature adjustment range is 25°F to 330°F.

Thermocouples

• Can be mounted to any silicone rubber heater and any calibration (J, K, etc.) is available.

Silicone Rubber Sponge Insulation

• To improve heater efficiency, 1/16", 1/8", 1/4", 3/8", or 1/2" insulation can be bonded to the outside of the heater. Closed cell silicone sponge is extremely flexible and has a temperature range of -103°F to 450°F.

Round Heaters

• Round shapes are available and are best attached to tooling with PSA.

Custom Shapes

• Odd shapes are available to fit those hard to heat devices.
• Holes and cut-outs help fit those irregular shaped tools.

Boot Hooks and Lace

• Boot hooks and lace is the most common mechanical mount.
• Book hooks are usually positioned 1.25" - 2" apart along the length of the heater.
• High temperature lace rated to 1000°F locks the heater in place similar to lacing a boot.

D Rings

• D rings are a solid wire formed in the shape of a D.
• They are best suited for medium to large heaters.
• A strap vulcanized to the heater may be inserted into the rings.

Snap Fasteners

• Snaps are only used on heaters with sponge insulation.
  • Insulation is available in 1/16", 1/8", 1/4", 3/8", or 1/2" thickness.

Velcro

• 1" wide Velcro straps secure the heater to the tool.
• Temperature rating -30°F to 380°F.

Boot Hooks and Rubber Bands

• High temperature rubber rings rated to 300°F can be used in conjunction with boot hooks and maintain constant tension through expansion and contraction.
